DJI AGRAS T50 elevates drone agricultural operations to new heights.
DJI AGRAS T50 elevates drone agricultural operations to new heights. It inherits a powerful coaxial twin-rotor propulsion system and a split-type torque resistant structure for next level stability when carrying 40 kg spraying or 50 kg spreading payloads.
DJI AGRAS T50 leverages a Dual Atomizing Spraying System, Front and Rear Phased Array Radars, and a Binocular Vision System. DJI AGRAS T50 excels across multiple scenarios, from surveying to spraying and spreading, guaranteeing stable operations and steady performance.
40 kg spraying
50 kg spreading
Spraying 16 L/min
Spreading 108 kg/min
Reverse Directional Spray During Flight
4-sprinkler spraying, flow rate 24 L/min
DJI AGRAS T50’s Dual Atomizing Spraying System provides an ultra-large flow rate of up to 16 L/min (2-sprinkler spraying). It produces uniform and fine spray droplets, and does not leak. DJI AGRAS T50 can be equipped with an additional pair of centrifugal sprinklers, increasing flow rate to 24 L/min (4-sprinkler spraying) for operations that require high application volume. When flying manually, use Reverse Directional Spray with four sprinklers to simplify operations without having to make turns.
21 hectares per hour
4 hectares per hour
1,500 kg of granules per hour
DJI AGRAS T50’s new spreader and spiral channel spinning disk significantly improve spreading efficiency and smoothness.
75 L max capacity and an expanded loading gate for quick refills.
The torque of the spreader is doubled and the discharge hatch is enlarged to enable a flow rate up to 108 kg/min.
Spraying and spreading operations are frequent, intense, and take place in complex environments. DJI AGRAS T50 has passed hundreds of reliability tests and its main body is durable to help ensure safe operation.
DJI AGRAS T50 is equipped with front and rear Active Phased Array Radars with double the number of RF channels for higher detection precision. Together they enable Multidirectional Obstacle Sensing, elevating operating safety. Two sets of Binocular Vision sensors enable DJI AGRAS T50 to accurately sense terrain and depict obstacles in detail, for automatic obstacle bypassing and Terrain Following over steep slopes.
DJI AGRAS T50 integrates aerial surveying, spraying, and spreading into a single drone. A high-resolution FPV gimbal camera enables real-time capture of field and orchard images. Paired with DJI RC Plus and RTK service, you can generate high definition maps which underpin subsequent automatic flight routes. DJI AGRAS T50 can take off and perform automatic operations, all at the push of a button.
DJI AGRAS T50 supports obstacle bypassing and Terrain Following for surveying of orchards on slopes up to 20°. With DJI RC Plus and its real-time mapping capabilities, it can automatically identify fruit trees and obstacles. Based on the distribution of the fruit trees, it can generate accurate and fully automatic 3D flight routes.

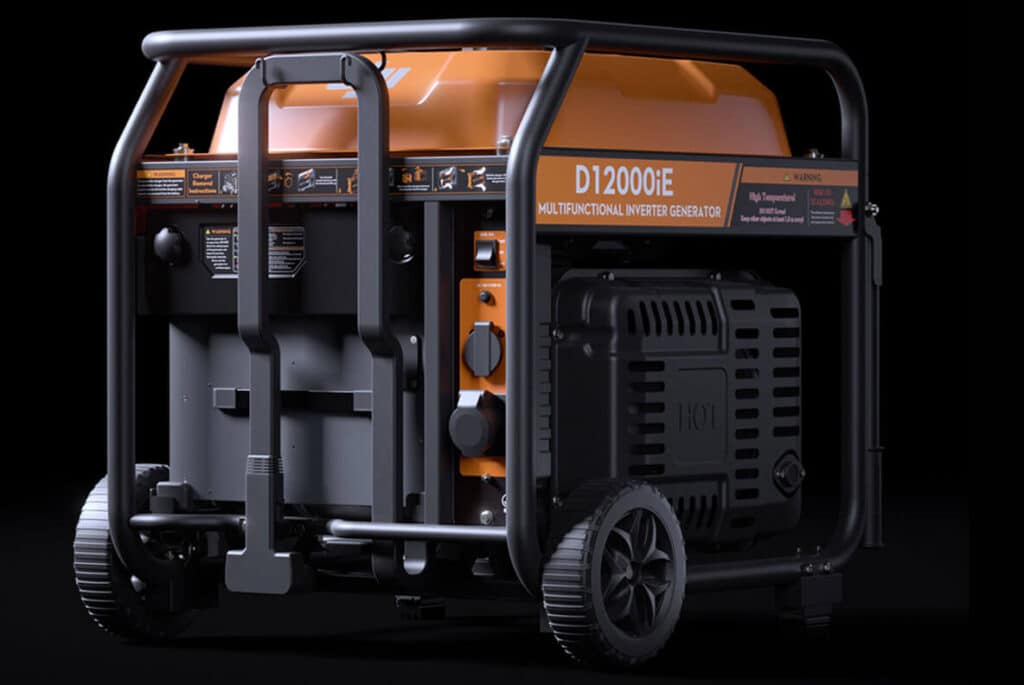

The D12000iE Multifunctional Inverter Generator features electronic fuel injection (EFI) technology and saves fuel use by 15%. The DB1560 Intelligent Flight Batteries charge in an Air-Cooled Heat Sink, enabling ultra-fast charging in 9 minutes. The C10000 Intelligent Charger can charge batteries directly with utility power.
Capacity increased to 30 Ah
Up to 1,500 charging cycles
![D12000iE Multifunctional Inverter Generator[18]](https://www.agdroneseast.com/wp-content/uploads/2024/12/2e23c3063120cfdbccf6df32d42be5d0-1024x685.jpg)
15% overall fuel savings
1,500 W AC output
9-min ultra-fast charging
9,000 W fast charging
Power-adaptive protection
1.5-m long charging cable
Up to 7,200 W charging
Dual-channel alternated charging
Power-adaptative protection
